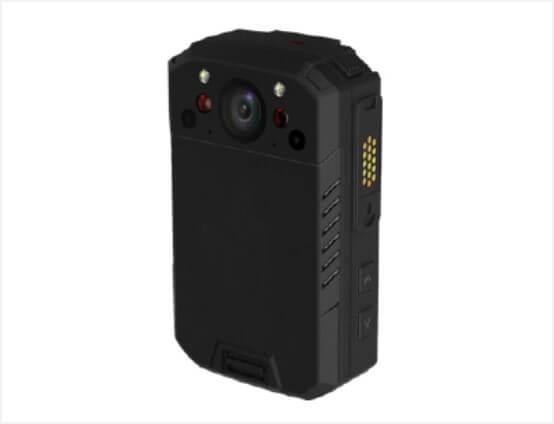

MPT210 Body Worn Camera
MPT210 is a body worn camera which can be used as a law-enforcement video recoder. This device supports one key to start 1080P high-definition real-time recording, and all the information such as GPS and video can be uploaded to VMS by wireless network: 3G/4G/WIFI. It can also support audio communication between devices in one group.
| SYSTEM | ||
|---|---|---|
| Main Processor | 2G 8-core CPU | |
| Operating System | Android 6.0.1 | |
| VIDEO | ||
|---|---|---|
| Record resolution | 2K/1080P/720P/WVGA | |
| Compression | H.265/H.264 | |
| Image sensor | 34 MP (7808×4392) | |
| Wide angle | 120° | |
| IR | 5m~10m, support auto/manual mode to switch | |
| Digital zoom | 8x | |
| Pre-record | ≤60s | |
| Post-record | ≤60s | |
| Laser positioning | Support | |
| Key event mark | Support to mark the important video | |
| Overlay | Support to overlay the recording time/ID/GPS etc | |
| STORAGE | ||
|---|---|---|
| RAM | 2G | |
| ROM | 32G | |
| SCREEN | ||
|---|---|---|
| Dimension | 5.8 inch colour LCD | |
| AUXILIARY INTERFACE | ||
|---|---|---|
| USB | 1 micro USB, support OTG | |
| SIM card slot | 1 micro SIM card slot | |
| NETWORK | ||
|---|---|---|
| Positioning system | GPS/GLONASS/BEIDOU/AGPS | |
| Cellular | Support 4G(FDD-LTE) | |
| WiFi | Support 802.11b/g/n/ac, support 2.4G/5G | |
| NFC | Support | |
| Bluetooth | Support Bluetooth 4.1 | |
| BATTERY | ||
|---|---|---|
| Capacity | 4.35V/3200mAh.Removable. Support replacing battery without switching off the device |
|
| Standby time | 7 days | |
| Recording time | 13h 30fps@1080p recording | |
| Battery charge | Support | |
| GENERAL | ||
|---|---|---|
| Ingress protection | IP67 | |
| Drop proof | 2 meters | |
| Working temperature | -30℃~55℃ | |
| Dimension (mm) | 102×63.6×28.6mm | |
| Weight | 215g（with clamp） | |
| Class | Date | Title | Type | Download |
| Data Sheet | 1 April 2021 | MP210 | MPT210-min |
